12K Carbon Fiber Heating Cable - 33 Ohm/m Electric Warm Floor Heating Wire for Underfloor Heating (5 to 100m)(35 m)

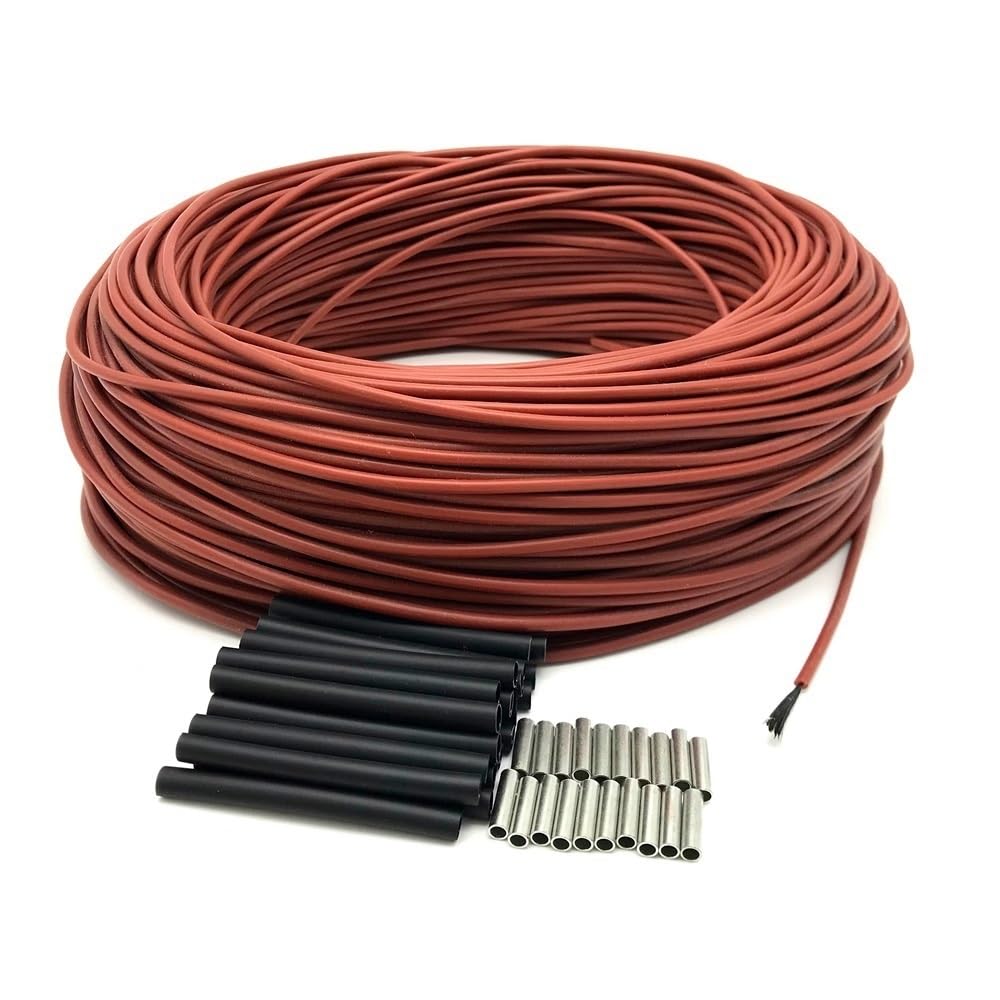

Carbon Fiber Heating Element, 12K 33ohm/m Infrared Carbon Heating Cable, Electric Warm Floor Heating Wire 5 to 100mTechnical Datas: Product Name: Carbon fiber heating wire Insulating material: Silicone rubber Max enduring temperature: 200C degrees Heating conductor: 12K Leakage current: 0.05mA/m The product can withstand max power: 25W/M Diameter: 3±0.2 MMColor: RedInfrared wavelength: 8UM-18UM Conductor resistance: 33±10% /m Package Includes:Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves Buy 35m = 35m cable + 6 pcs copper tube + 6 pcs sleeves Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves Buy 25m = 25m cable + 4 pcs copper tube + 4 pcs sleeves Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves Buy 15m = 15m cable + 2 pcs copper tube + 2 pcs sleeves Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves Buy 5m = 5m cable + 2 pcs copper tube + 2 pcs sleeves Calculate power: Voltage*Voltage÷resistance=electric power, 12K=33ohm/meter For example, using 10m 12K carbon fiber cable on 220V, the power is: 220V*220V÷(10meters*33)=150W, 150w/10m=15w/m For example, using 15m 12K carbon fiber cable on 220V, the power is: 220V*220V÷(15meters*33)=100W,100w/15m=6.66w/m The longer length, the smaller power and lower heating temperature. Installation Suggestions:Because of the feature of the carbon fiber cable, this cable cannot be used for a long length. For underfloor heating, we suggest to use 10m per piece and connect all the pieces in parallel connections. Keep the distance between cables 8~12cm.What does "12K" mean? The "K" means 1 thousand, so 12K is 12 thousands, that means the conductor of 12K carbon fiber heating cable is combined with 12000 pcs of carbon fiber, resistance is 33 Ohm/m. Powor

• Carbon Fiber: This 12K heating cable is crafted from 12,000 carbon fibers, ensuring efficient and even heat distribution.
• Optimal Resistance: With a resistance of 33 Ohm/m, this cable is designed for maximum power efficiency, making it ideal for underfloor heating applications.
• Custom Length Options: Available in lengths from 5m to 100m, allowing you to choose the perfect size for your heating needs.
• Easy Installation: Recommended installation involves using 10m pieces connected in parallel with an 8-12cm gap between cables for optimal performance.
• Durable and Safe: Made with silicone rubber insulation, this heating cable withstands temperatures up to 200°C and has a low leakage current of 0.05mA/m for safety.
